Turning Tools, 1/2" Indexable, 5 Piece Set, A R Warner

5 metal turning tools 1/2" shank, 4" overall length
Tool styles are AR, AL, BR, BL, & E
6 turning inserts, TPMB-322
6 screws
1 - 1/16" Allen wrench

Part Number: 1620
Weight: 1.76 lb

Price: $214.95

Share this page:
http://lmscnc.com/1620

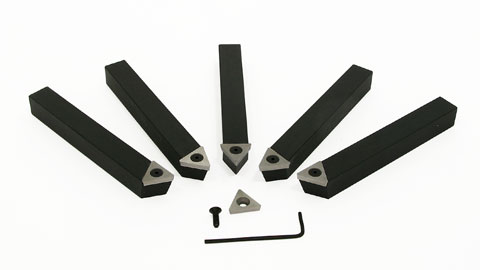

This Arthur R. Warner Co. precision tool holder kit uses HSS, combining the advantages of high speed steel cutting tools with the convenience of indexable tooling.

The kit contains the following:

5 1/2" indexable turning tool bars and shank 4 inches overall length

6 Turning Inserts: T-15 High Speed Steel TPMB-322 (TD6P)

6 4-40FH screws and one 1/16" hex wrench.

The TPMB322 insert:

Relief : 11 degree

IC: 0.375 inch

Thickness: .125 inch

Hole: 0.150 inch Top opening: 0.250 inch

Radius: 0.031 inch

Each tool holder is a different style. There is one each of the following:

Style AR right hand tool

Style BR right hand tool with a 15° lead angle

Style E Neutral threading tool with 60° included angle

Style BL left hand tool with a 15° lead angle

Style AL left hand tool

The Arthur R. Warner Co. is a family-owned American manufacturer of high speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high speed steel (and tool steel). Their quality is excellent and LittleMachineShop.com is proud to carry their products.

Chris' Tips

Chris' Tips

ABOUT A.R. WARNER

The Arthur R. Warner Co. is a family-owned American manufacturer of high-speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high-speed steel (and tool steel).

Our Indexable Turning Tool Set was first introduced in July of 1998. Since the introduction, we have expanded our sizes of Turning Tool Sets, introduced 2 sizes of Indexable Boring Bar Kits, a Profiling Kit and a Threading Kit with the appreciated input from numerous Home Shop Machinists.Our latest kits, designed for grooving, have been very well received in both hobbiest and manufacturing markets.

Our kits contain T-15 HSS throw-away inserts. Most machinists are familiar with "Steel" toolbits and Carbide inserts, and now they can achieve the convenience of indexability while using a cutting material which is typically better suited for their smaller lathes and milling machines. Overall, we consider T-15 HSS to be the best grade of readily available HSS for wear resistance, toughness, and hot hardness.

Use T-15 HSS for:

Interrupted Cuts
Underpowered Spindles
Gummy material like stainless, aluminum, and brass
Less than rigid setups

What do AR, AL, BR, BL, and E mean?

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Here's a video that talks about high speed steel tooling.
