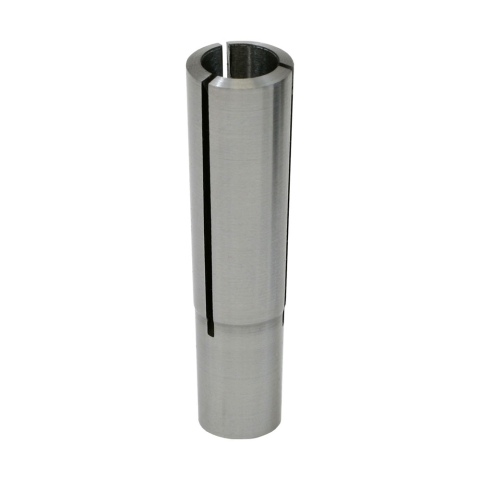

Collet, 2MT, 1/2"

1/2" #2 Morse taper collet
3/8"-16 internal drawbar thread
Made of high grade tool steel
Hardened and ground to close tolerance
Overall length is 2.67" (68 mm)

Part Number: 1751
Weight: 0.12 lb

Price: $13.95

Share this page:
http://lmscnc.com/1751

1/2" 2 Morse taper collet to fit spindles with a Morse taper. This collet is made from high-grade tool steel and is precision ground and hardened.

The drawbar thread is 3/8"-16 and the overall length is 2.67" (68 mm).

Chris' Tips

Chris' Tips
Most Chinese mills come with metric threads on the drawbar. However, the Morse taper tools we sell have "inch" drawbar threads. This is because we could not find a reliable supplier of tools with metric drawbar threads.

You might need to a make or purchase a drawbar to work with these tools.

Specifications

Specifications
Hole Diameter	0.500" (12.70 mm)
Drawbar End	3/8"~16

Compatibility

Compatibility

This product works with lathes with a 2 Morse taper spindle taper including:

Grizzly M1015 Shop Fox 6x10 Micro Lathe
Micro-Mark 85181 MicroLux 6x10 Micro Lathe
SIEG C1 6x10 Micro Lathe
Woodstock International M1015 Shop Fox 6x10 Micro Lathe
Emco Compact 5 5x14 Lathe
Prazi SD300 5x12 Lathe
Craftsman & Atlas 612 6x18 Lathe

This product works with mills with a 2 Morse taper spindle taper including:

Prazi BF400 Mill
Prazi BF450 Mill
Clarke CMD10 Metalworker Micro Mill
Harbor Freight 47158 Central Machinery Micro Mill
SIEG X1 Micro Mill
SIEG SX1 Micro Mill
LittleMachineShop.com 4700 HiTorque Micro Mill
SIEG SX1P Micro Mill
Harbor Freight 42976 Central Machinery Mill/Drill
