Rotary Table, 6" - PrecisionMade in Taiwan

Rotary Table, 6" - Precision
  • 6 inch horizontal / vertical rotary table
  • #2 Morse Taper center hole
  • 3 T-slots with 0.43" channels
  • Height 3.1", vertical height 7.8"
  • Gear ratio 90:1, 10 second vernier reading
Part Number: 1787
Weight: 58.0 lb

Price: $519.95

In stock
Quantity:

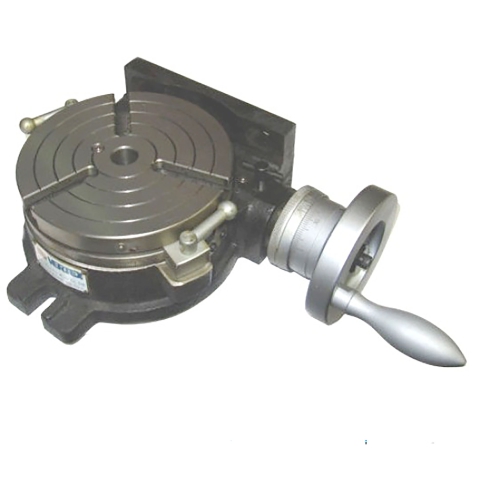

This 6" horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The cast iron table is precision machined in Taiwan and has a #2 Morse taper center hole. This 6" rotary table is graduated with a 360° scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. This horizontal/vertical rotary table has lock down clamps and the crank can be disengaged.

The worm gear and center hole are hardened and ground.

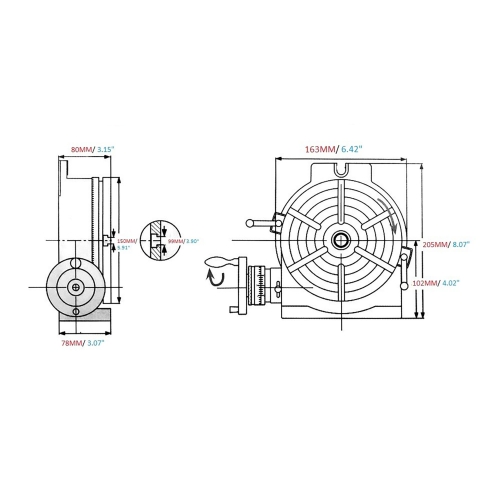

The 6" rotary table is 3.1" high when horizontal, and 7.8" when vertical. The centerline is 3.9" above the table when in the vertical position.

The worm ratio is 90 to 1 and one rotation of the handle equals 4 degrees on the collar.

There are three T-slots and each slot is 0.43" in width.

Flatness of clamping surface: 0.0006"

Parallelism of clamping surface to base: 0.0008"

Squareness of clamping surface to angle face: 0.0004"

Squareness of clamping surface to center slot: 0.0008"

Concentricity of center bore: 0.0008"

Dividing plates and a tailstock are available for this rotary table.

Chris Chris' Tips
The Vertex 6" rotary table works with this tail stock, and this dividing plate set.

See the comparison chart of the rotary tables we carry.

Specifications
Ratio 90:1
Table Diameter 5.91" (150.0 mm)
Height (Mounted Horizontal) 3.1" (80 mm)
Center Hole Taper 2 Morse Taper
Center Height (Mounted Vertically) 3.90" (99.0 mm)
T-Slot Width 0.43" (11.0 mm)
Minimum Vernier Reading 10"
Flatness of Table Surface (Concave) 0.0006" (0.015 mm)
Parallelism of Table Surface to Base 0.0008" (0.020 mm)
Squareness of Table Surface to Base 0.0004" (0.010 mm)
Runout of Table Surface 0.0008" (0.020 mm)
Runout of Center Taper 0.0006" (0.015 mm)
Squareness of Table Surface to Angle Face Slot 0.0006" (0.015 mm)
Center Hole Parallel with the Angle Face 0.0006" (0.015 mm)
Maximum Spacing Error 80"

Compatibility

This product works with these LittleMachineShop.com products:

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

  •   Grizzly G0463 Mill/Drill
  •   Harbor Freight 93885 Central Machinery Mill/Drill
  •   SIEG X3 Small Mill
  •   Woodstock International M1110 Shop Fox Small Mill
  •   BusyBee CX611 Craftex Small Mill
  •   Grizzly G0619 Mill/Drill
  •   SIEG SX3 Small Mill
  •   Travers Tools OT2225SX3 OTMT Small Mill
  •   Grizzly G0704 Mill/Drill With Stand
  •   Grizzly G0759 Mill/Drill With Stand
  •   Grizzly G3103 Vertical Mill
  •   Grizzly G3102 Vertical Mill
  •   Harbor Freight 42976 Central Machinery Mill/Drill
  •   SIEG X3.5 Large Bench Mill
  •   LittleMachineShop.com 6700 HiTorque Large Bench Mill
  •   LittleMachineShop.com 6750 HiTorque Large Bench Mill
  •   LittleMachineShop.com 6770 HiTorque Large Bench Mill
  •   Grizzly G0720 Bench Mill
  •   Grizzly G0720R Bench Mill
  •   Grizzly G0722 Bench Mill
  •   SIEG SX4 Bench Mill
  •   Harbor Freight 33686 Central Machinery Small Mill
  •   Rong Fu RF-xx Milling & Drilling Machine
  •   BusyBee CX705 Craftex Lathe Mill Combo
  •   Grizzly G0516 Lathe Mill Combo
  •   SIEG M6 Multi-purpose Machine
