Clamping Kit, 8 mm T-Slot, 44-Piece
- Six T-slot nuts to fit 8 mm T-Slots
- Ten M6 studs
- Six step clamps
- Six flange nuts
- Sixteen step block pairs
Weight: 5.20 lb
Price: $74.95
https://littlemachineshop.com/2039
This clamping kit fits the 8 mm T-slots on micro mills.
The clamping kit includes 10 M6 studs, 16 step blocks in pairs, 6 T-slot nuts, 6 flange nuts, and 6 step clamps.
The stated dimension of the clamping kit is the width at the top of the T-slot.
See the Compatibility tab for machines that work with this product.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |

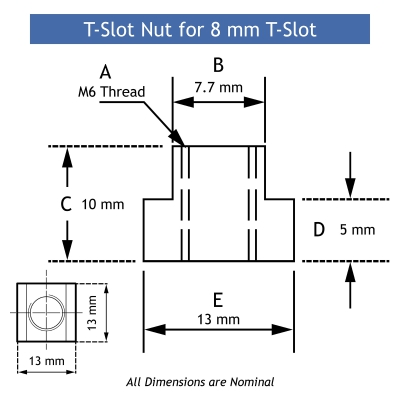

Nominal Sizes for 8 mm T-Slot Nut
 |
Compatibility
This product works with these LittleMachineShop.com products:
This product works with mills with a 0.315 inch T-slot width including:
- Prazi BF400 Mill
- Prazi BF450 Mill
- Clarke CMD10 Metalworker Micro Mill
- Harbor Freight 47158 Central Machinery Micro Mill
- SIEG X1 Micro Mill
- SIEG SX1 Micro Mill
- LittleMachineShop.com 4660 HiTorque Micro Mill
- LittleMachineShop.com 4700 HiTorque Micro Mill
- SIEG SX1P Micro Mill
