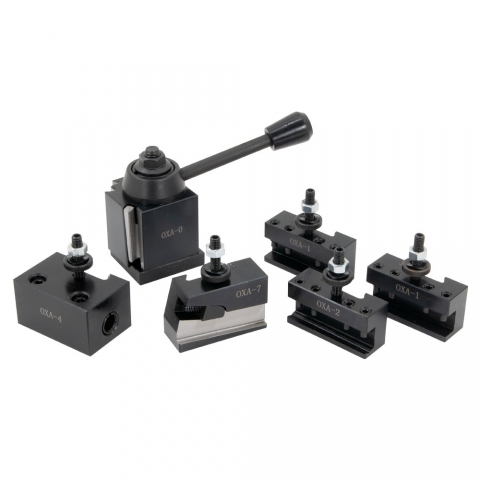

Quick Change Tool Post Set, 0XA, 4-Degree Cut-Off
- Quick change tool post set for lathes with up to 9" swing
- 60% of AXA, or series 100 size wedge type QCTP
- This lathe quick change pool post set includes a 4-Degree Cut-off tool holder
- Includes five tool holders
- All steel construction
This quick change tool post set is designed for lathes with up to 9" swing. It requires 3/4" from the top of the compound rest to the center of the lathe.
It will hold turning tools with shanks from 1/4" to 1/2". The boring bar holder will hold 3/8" and 1/2" boring bars. It will hold 1/2" tall cut-off blades.
All working parts are hardened and ground. It is completely sealed for maintenance-free operation.
This set includes the tool post and the following tool holders:
2 - #1 Turning & Facing
1 - #2 Boring, Turning & Facing
1 - #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars
1 - #7 Universal Parting Blade (for 1/2 inch cut-off blade - 4-degree)
This tool post mounts with an M10 stud that is included. It also includes a piece of steel from which you can make a T-slot nut to fit your lathe.
This product works with these LittleMachineShop.com products:
- 3119 Quick Change 2MT Tool Holder, 0XA
- 3116 Quick Change Boring Tool Holder, 0XA
- 3117 Quick Change Cut-Off Tool Holder, 0XA
- 3774 Quick Change Cut-Off Tool Holder, 0XA, 4-Degree Cut-Off
- 3118 Quick Change Knurling & Turning Tool Holder, 0XA
- 3115 Quick Change Turning & Boring Tool Holder, 0XA
- 3114 Quick Change Turning & Facing Tool Holder, 0XA
- 4153 Set Screw, M6x16, Socket Dog Point, Set of 10
