Vise, 5" Precision Milling, Professional Grade

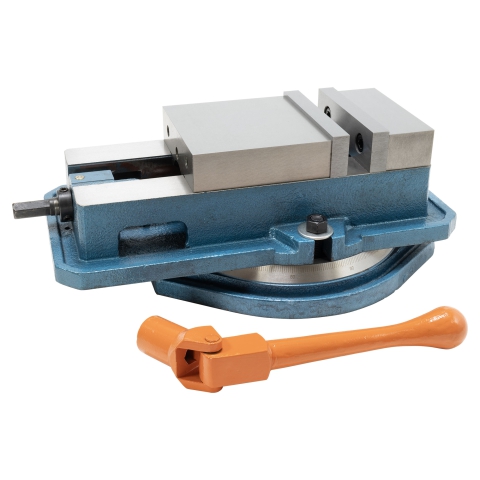

Precision 5" Kurt-style milling machine vise with swivel base
Top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground

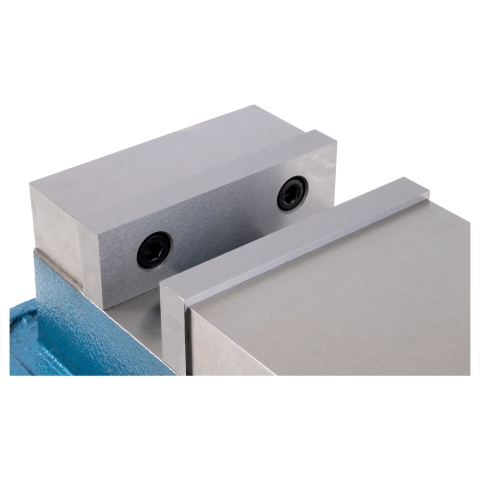

Interchangeable jaws are hardened and ground

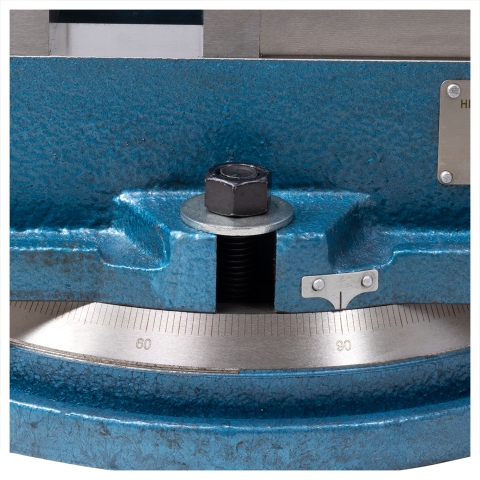

The detachable swivel base features easy to read divisions

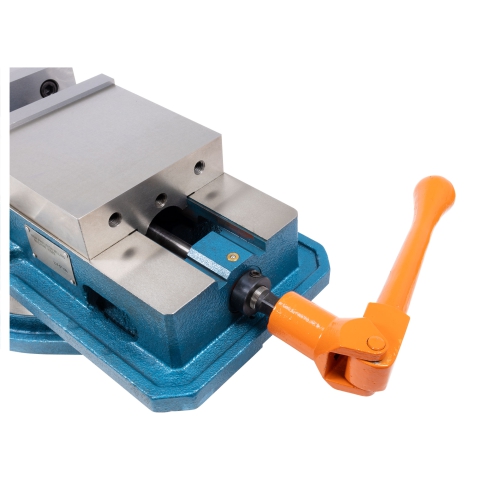

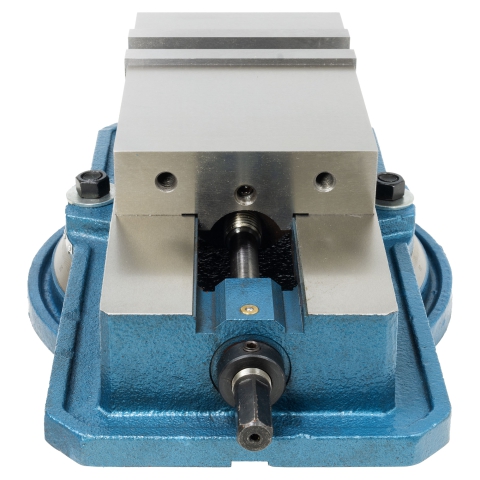

Fully enclosed heat treated screw

Part Number: 3951
Weight: 68.9 lb

Price: $334.95

Share this page:
http://lmscnc.com/3951

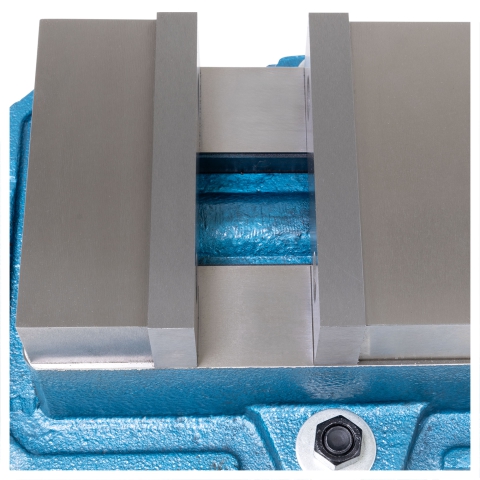

The replaceable jaws can be mounted on either end of the fixed and movable jaw supports providing a wide range of clamping distances.

Chris' Tips
This is our premium vise for the mini mill. It is considerably heavier and therefore more rigid than our next biggest vise.

This vise includes a couple of T-bolts for mounting. But they are way too big for a mini mill, so we recommend our Vise Mounting Kit.

Here's the spec booklet that the factory sends along.

Specifications
Jaw width	5.1" (130 mm)
Jaw depth	1.3" (34 mm)
Maximum jaw opening	4.7" (120 mm)
Swivel Base	Yes
Weight	65 lbs (30 kg)
Height with base	5.3" (135 mm)
Height w/o base	3.8" (97 mm)
Length	14.3" (363 mm)
Width with base	9.8" (248 mm)
Width w/o base	7.0" (178 mm)
Hold-down mechanism	Yes
Ways parallel to bottom of vise within	0.0003" in 4" (0.008 mm in 100 mm)
Jaws perpendicular to ways within	0.0004" in 4" (0.010 mm in 100 mm)
