Digital Position Readout, Drill Press, iGaging

Digital Position Readout, Drill Press, iGaging
  • Drill press digital readout (DRO)
  • Easy to read LCD display
  • Hardened stainless steel beam
  • Range: 0 - 5"/125 mm, Accuracy: 0.001"
  • Resolution: 0.0005"/0.01 mm/ 1/64"
Part Number: 4197
Weight: 0.85 lb

Price: $49.95

In stock
Quantity:

The iGaging EZ-Depth Drill Press DRO improves the accuracy and precision of your hole drilling. It is attached directly to the collar on the quill and the side frame of the drill press. Zero the display with the drill in contact with the workpiece, then use the digital display to measure the drilled depth.

Display includes fractional inch, decimal inch, and millimeters.

Buttons include On/Off/0 button, INC button for toggling between absolute and incremental mode, and a Mode button to change measurement display.

Instructions include four mounting methods to suit different drill press designs.

IP54 protective rating for moisture and dust resistance.

Includes double rail mounting brackets, installation parts and tools as well as a 3V CRF2032 battery.

Specifications
Range 0" - 5" (0 mm - 127 mm)
Resolution 0.0005" (0.013 mm)
Accuracy 0.001" (0.03 mm)
Clear to Zero Yes
Inch/mm Display Yes
International Protection Rating IP54
Incremental/Absolute Yes
"Digital Position Readout Fractional inch display

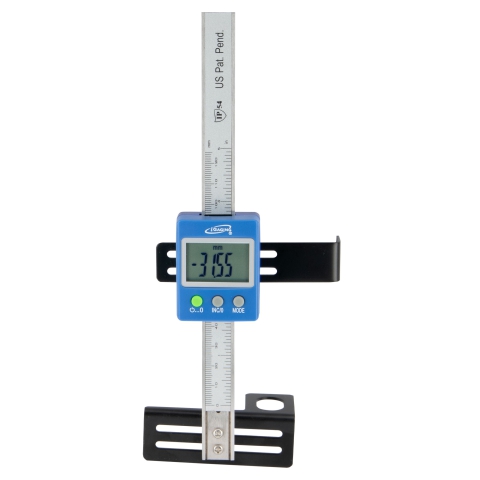

"Digital Position Readout Metric display in millimeters

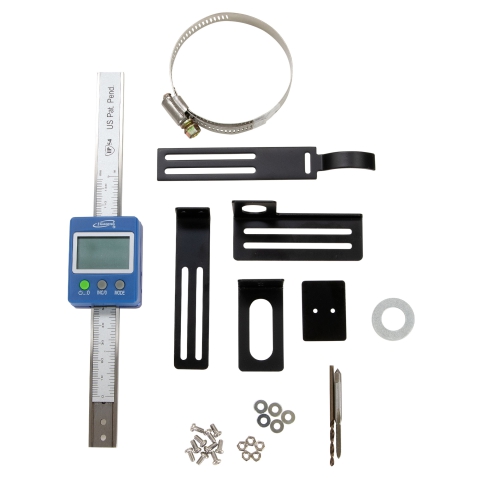

"Digital Position Readout Kit contents

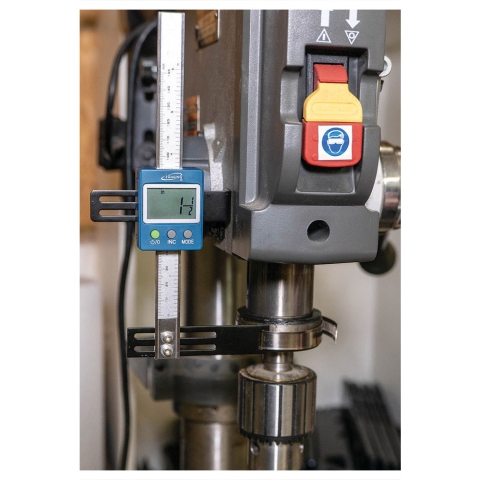

"Digital Position Readout Typical Installation

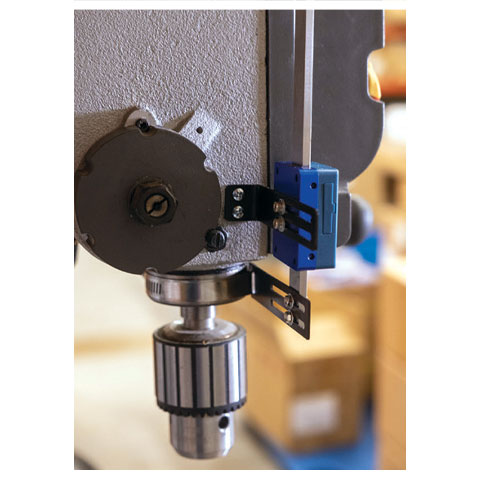

"Digital Position Readout Back side of typical installation
