Vise, 3" Precision Milling, Professional Grade

Vise, 3" Precision Milling, Professional Grade
  • Totally enclosed heat treated screw
  • High repeatability
  • Detachable swivel base features easy to read divisions
  • Hardened jaws
Part Number: 4740
Weight: 27.8 lb

Price: $234.95

In stock
Quantity:


PayPal Credit

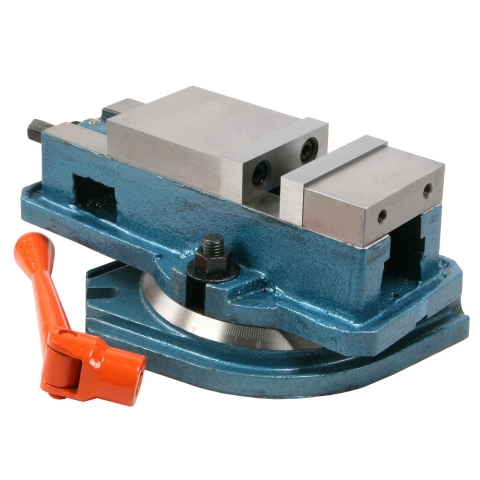

This is a very well-made precision 3" Kurt-style milling machine vise with a swivel base.

The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground.

The jaws are hardened and ground.

The detachable swivel base features easy to read divisions.

The replaceable jaws can be mounted on either end of the fixed and movable jaw supports providing a wide range of clamping distances.

Chris Chris' Tips
This is our premium vise for the mini mill. It is considerably heavier and therefore more rigid than our next biggest vise.

This vise includes a couple of T-bolts for mounting. But they are way too big for a mini mill, so we recommend our Vise Mounting Kit.

Here's the spec booklet that the factory sends along.

Specifications
Jaw width 3.1" (80 mm)
Jaw depth 0.9" (24 mm)
Maximum jaw opening 3.0" (75 mm)
Swivel base Yes
Weight 28 lbs (12 kg)
Height with base 4.3" (110 mm)
Height w/o base 3.1" (80 mm)
Length 11.6" (295 mm)
Width with base 8.7" (220 mm)
Width w/o base 5.5" (140 mm)
Mounting bolt centers 7.9" (200 mm)
Mounting bolt centers w/o base 4.3" (110 mm)
Hold-down mechanism Yes
Ways parallel to bottom of vise within 0.0003" in 4" (0.008 mm in 100 mm)
Jaws perpendicular to ways within 0.0004" in 4" (0.010 mm in 100 mm)

Compatibility

This product works with these LittleMachineShop.com products:

This product works with the following mills. (If your machine is not on this list, check with us before ordering.)

  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   BusyBee CX605 Craftex Mini Mill
  •   Cummins (Tools Now) 7877 Mini Mill
  •   Eastwood 32498 Mini Mill
  •   Harbor Freight 44991 Central Machinery Mill/Drill
  •   Homier 03947 Speedway Mini Mill
  •   Northern Tool 49657 KLUTCH Mini Mill
  •   Penn Tool Co XJ-9510-1 Precise Mini Mill
  •   SIEG X2-R8 Mini Mill
  •   Travers Tools OT2213 OTMT Mini Mill
  •   SIEG X2P Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   SIEG X2D Mini Mill
  •   SIEG X2L Mini Mill
  •   WEN 33013 WEN Mini Mill
  •   SIEG X2LF Mini Mill
  •   BusyBee CX612 Craftex Mini Mill
  •   SIEG SX2 Mini Mill
  •   Micro-Mark 84630 MicroLux Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG SX2L Mini Mill
  •   LittleMachineShop.com 3960 HiTorque Mini Mill
  •   LittleMachineShop.com 3990 HiTorque Mini Mill
  •   LittleMachineShop.com 4190 HiTorque Mini Mill
  •   SIEG SX2LF Mini Mill
  •   Grizzly G0781 Mill/Drill
