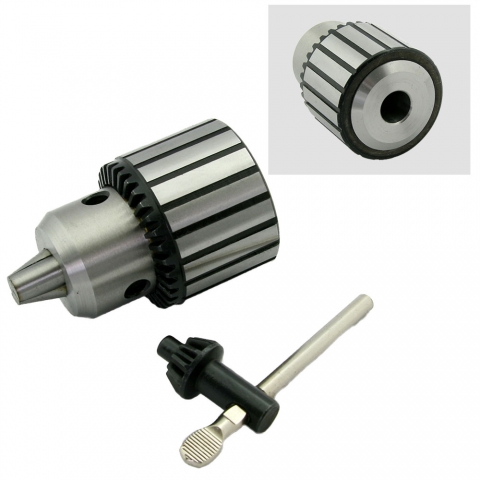

Drill Chuck, 5/8" Professional Grade
- Precision made with the highest TIR
- Designed for heavy duty jobs
- Key included
- Capacity: 1/16” - 5/8”
- Mounts to 33 Jacobs taper arbor
Part Number: 4863
Weight: 2.00 lb
Weight: 2.00 lb
Price: $37.95
Share this page:
https://littlemachineshop.com/4863
https://littlemachineshop.com/4863
1/16" - 5/8" Capacity professional drill chuck. Designed for heavy jobs; all working parts are hardened and manufactured to the highest standards for durability and straight alignment.
This 5/8" drill chuck is comparable to a Jacobs 34-33 heavy-duty drill chuck, including the runout specification of 0.004" (0.10 mm) or less. Chuck key is included.
Chris' TipsUse a 3MT to 33JT drill chuck arbor with the mini mills having a 3 Morse taper spindle.
| Capacity | 0.06" - 0.63" (1.5 mm - 16.0 mm) |
| Maximum Runout | 0.004" (0.10 mm) |
| Mount | 33 Jacobs Taper |
Compatibility
This product works with these LittleMachineShop.com products:
- 3543 Arbor, Drill Chuck 0MT Standard to 33JT
- 5524 Arbor, Drill Chuck 1/2" Straight to 33JT
- 1894 Arbor, Drill Chuck 1MT Tang to 33JT
- 1883 Arbor, Drill Chuck 2MT Drawbar to 33JT
- 1804 Arbor, Drill Chuck 2MT Short to 33JT
- 2955 Arbor, Drill Chuck 2MT Standard to 33JT
- 1190 Arbor, Drill Chuck 2MT Tang to 33JT
- 1806 Arbor, Drill Chuck 3MT Drawbar to 33JT
- 1192 Arbor, Drill Chuck 3MT Tang to 33JT
- 1676 Arbor, Drill Chuck R8 to 33JT
- 2436 Arbor, Drill Chuck, Tormach TTS to 33JT
