Chip Shield, Magnetic for 3" - 4" Vise, Clear

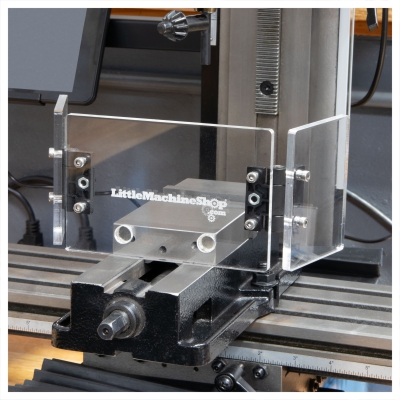

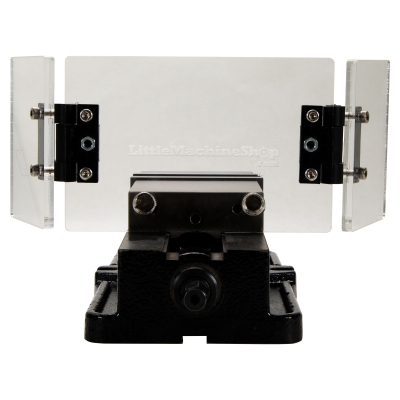

- Milling machine chip shield uses strong Neodymium magnets to mount to the front or back of a machine
- Conveniently remove without the hassle of fussing with tools or screws

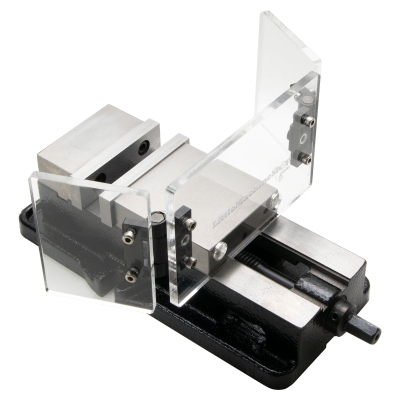

- Adjustable friction hinges allow setting the side panels at any angle up to 150 degrees

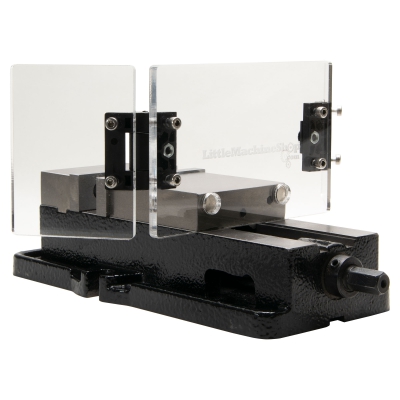

- Compatible with any 3"- 4" milling vise with a flat surface on either end
- Approximate dimensions: 11 1/4" x 3 3/4" x 1/4"
Weight: 0.64 lb
Use caution when placing the milling machine chip shield near the vise or any other metal object as the Neodymium magnets are very strong and will act to rapidly close the gap if they are unintentionally placed too close to the object.

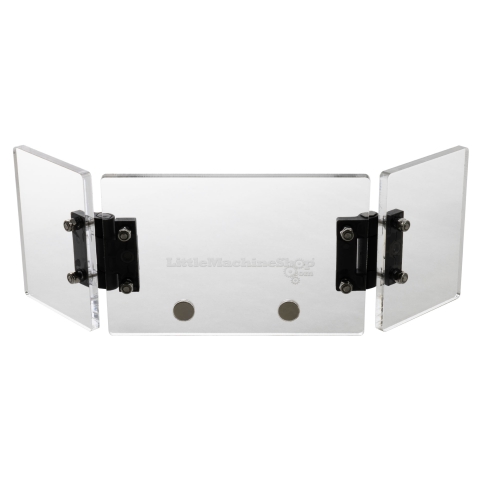

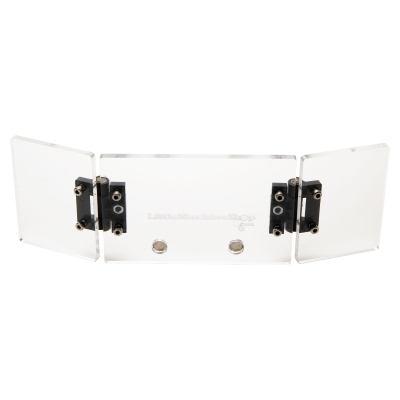

To assemble, select the side of the center panel where the magnets are flush with the surface and lay this side facedown on a flat surface. Use the supplied machine screws to attach the supplied hinges joining the center panel to each side panel. Run the screws through the nylon lock nuts before installing on the hinges. Then start all 4 screws in each hinge before tightening, then tighten the screws with the hinge square to the panel, and the panels square to each other. Turn the torque adjustment screw on the hinge to the desired friction when moving the side panels.
This product works with these LittleMachineShop.com products:
- 2500 Vise, 3" Precision Milling
- 2024 Vise, 3" Precision Milling, Heavy, No Swivel Base
- 1699 Vise, 3" Precision Milling, Heavy, with Swivel Base
- 4740 Vise, 3" Precision Milling, Professional Grade
- 1879 Vise, 4" Precision Milling, Heavy, No Swivel Base
- 1755 Vise, 4" Precision Milling, Heavy, with Swivel Base
- 4733 Vise, 4" Precision Milling, Professional Grade
