Dial Test Indicator Set, 0.3" x 0.0005"

Dial Test Indicator Set, 0.3" x 0.0005"
  • 0-0.03" Dial Test Indicator Set with .0005" Graduation
  • Three dovetail positioning mounts work with most existing test indicator accessories
  • Precision gear-driven design with smooth jeweled movement
  • Frictionally adjustable contacts
  • High contrast easy to read dials with a white background
Part Number: 5379
Weight: 0.48 lb

Price: $59.95

In stock
Quantity:

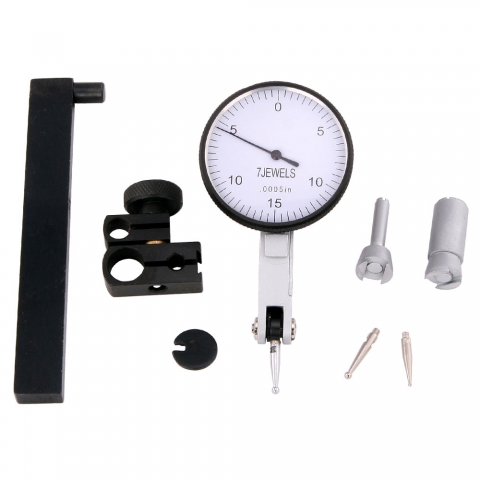

Includes 2 contact points, 2 dovetail clamps, 1 swivel post holder, 1 tool post holder and 1 contact wrench in a fitted case.

Manufactured and inspected at world class factory that produces highest quality European brands.

Contact point reverses automatically to maintain clockwise hand rotation. Meets or exceeds ANSI/ASME accuracy specifications.

Narrow body for in reach ability, and a satin chrome finish for durability.

Interchangeable with 3808AC.

Specifications
Range 0.00" - 0.03" (0.0 mm - 0.8 mm)
Resolution 0.0005" (0.013 mm)
Dial Reading 0-15-0
