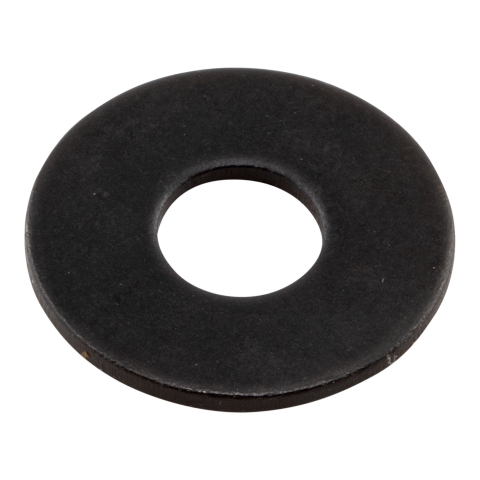

Washer, M5 Flat Large Diameter
- M5 flat washer - wide
- ID: 5.3 mm, OD: 14.7 mm, Thickness: 1 mm
- Used on numerous HiTorque and SIEG min lathes
Weight: 0.00 lb
Inside diameter 5.3 mm, outside diameter 14.7 mm, thickness 1 mm.
See Used On tab for reference to machines using this part and the corresponding drawing number.
|Inside Diameter Nominal Size||0.21" (5.3 mm)|
|Outside Diameter Nominal Size||0.59" (15.0 mm)|
|Thickness Nominal Size||0.04" (1.0 mm)|
In your instruction manual, this part appears on the parts list as:
