DRO Display, Hard Wired

DRO Display for hard wired DRO kits
Made for HiTorque bench mills and lathes

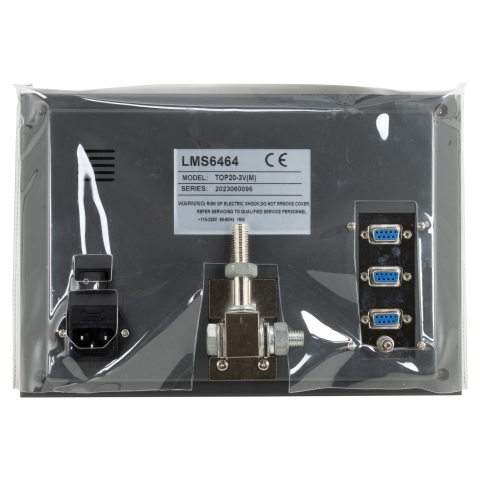

Comes with protective cover and can be used with cover on or off
Three 9-Pin connection ports allow use in both 3-axis and 2-axis application

Part Number: 6464
Weight: 3.35 lb

Price: $249.95

Share this page:
https://littlemachineshop.com/6464

Description

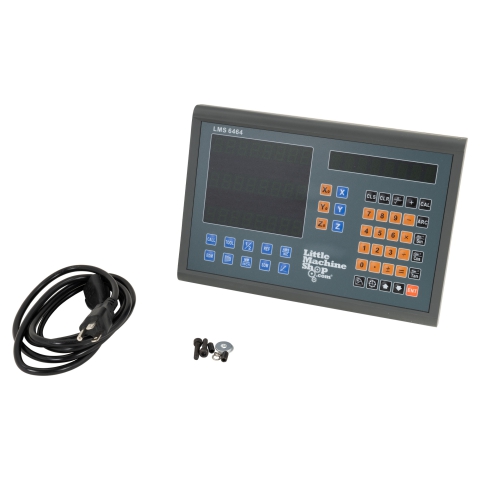

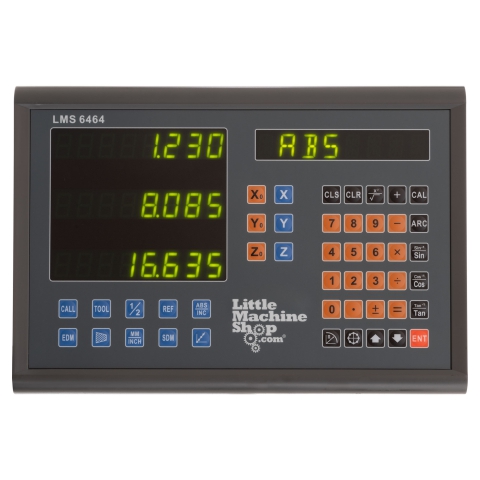

DRO display for the hard wired 2-axis and 3-axis DRO kits for HiTorque bench mills and bench lathes.

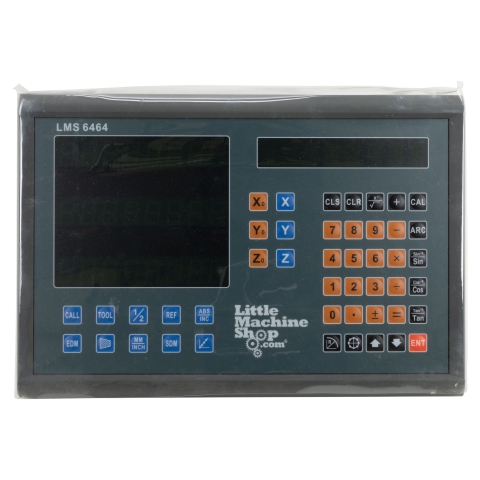

This display comes with a protective cover which can be kept on the display during use. It is designed to be used with either a vertical or horizontal stand for mill or lathe.

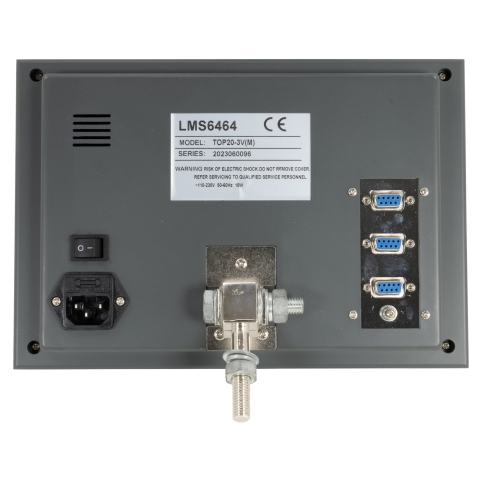

The display comes with three 9-Pin ports for constant connection to the machine.

See the Compatibility tab for products that work with this product.

Chris' Tips

Chris' Tips
Here is the Users Manual for the DRO display unit.

Specifications

Specifications
Repeatability	0.0002" (0.005 mm)
Resolution	0.0002" (0.005 mm)
Specified Accuracy	0.0020" (0.050 mm) / 1 m travel
Accuracy / Foot	0.0020" (0.050 mm)
Accuracy / 100 Mm	0.0020" (0.050 mm)
Scale Technology	Magnetic
Scale Protection	Coolant & dust resistant
Voltage	120-240 V
Clear to Zero	Yes
Direct Entry of Position	Yes
Inch/mm Display	Yes
Power Off Memory	Yes
Reversible Count Direction	Yes
Find Center	Yes
Bolt Circles	Yes
Bolt Lines	Yes
Preset Points	Yes
Tool Offsets	Yes
Radius/Diameter	Yes
Incremental/Absolute	Yes
Calculator	No
Arc Machining	No
Linear Error Compensation	No
Made In	China
Warranty	1 years
Warranty	1 year
Phone Tech Support	Free
