Stud, AXA QCTP, for HiTorque 9x20 Lathes (Component)
- Makes AXA QCTP a bolt-on accessory for HiTorque 9x20 lathes
- Threads through tool post into compound rest
- Outside thread is 14mm x 2mm
- Length: Shaft (90mm/34mm threaded), Bolt Head (12.88mm)
- Hex head is 18mm
Part Number: 6721
Weight: 0.30 lb
Weight: 0.30 lb
Price: $5.95
Share this page:
http://lmscnc.com/6721
http://lmscnc.com/6721

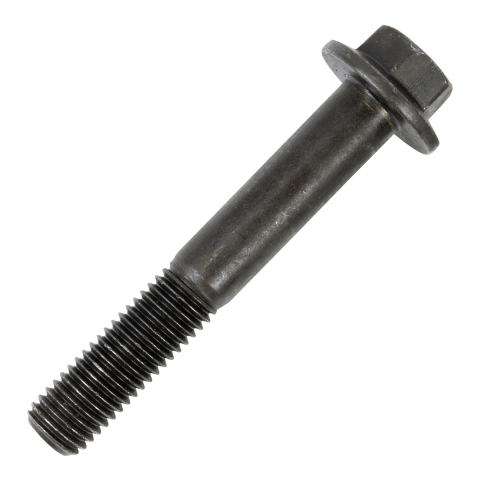

Black-phosphate class 10.9 steel bolt which is run through the middle of the AXA tool post into the 14mm x 2mm threading of the compound rest.
The shaft length is 90mm with min. thread length of 34mm. The hex head height is 12.8mm with an 18mm hex head and a 30.5mm flange.
See the Compatibility tab for products that work with this product.
| Material | Class 10.9 Black-Phosphate Steel |
| Thread Direction | Right |
| Thread Size | M14 |
| Thread Pitch | 2 mm |
| Thread Fit | Class 6g |
| Length | 3.5" (90 mm) |
| Threading | Partially |
| Min. Thread Length | 1.3" (34 mm) |
| Head Width | 0.7" (18 mm) |
| Head Height | 0.5" (13 mm) |
| Flange Diameter | 1.2" (30 mm) |
| Strength Grade/Class | Class 10.9 |
| Hardness | Rc 32 |
| Specifications Met | ISO 898-1 |
