Products > Lathe > 7x10/12/14 Mini Lathe (C2/C3) Accessories

Gear Set, Fine Feed, Mini Lathe

         Made in United States
Gear Set, Fine Feed, Mini Lathe
Part Number: 1137
Weight: 0.21 lb

Price: $39.95

In stock
Quantity:


Share this page:
http://lmscnc.com/1137

  • 80/15 and 90 teeth
  • Module 1 Metric gears
  • Bore 12 mm
  • Keyway 3 mm
  • Width 8 mm

Description

This gear set reduces the feed rate for turning from 0.0039" per spindle revolution to 0.0026" per revolution. Slowing the feed rate can help improve the surface finish.

They replace the two 80 tooth gears and the lower 20 tooth gear.

They are 3D printed from PTEG.

Photos

"Gear Set Single Gear

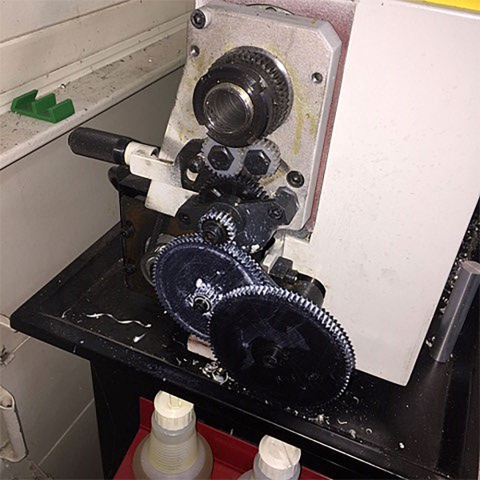

"Gear Set Gears Installed
