Products > Replacement Parts > Lathes, Mini 7x10/7x12 (C2)

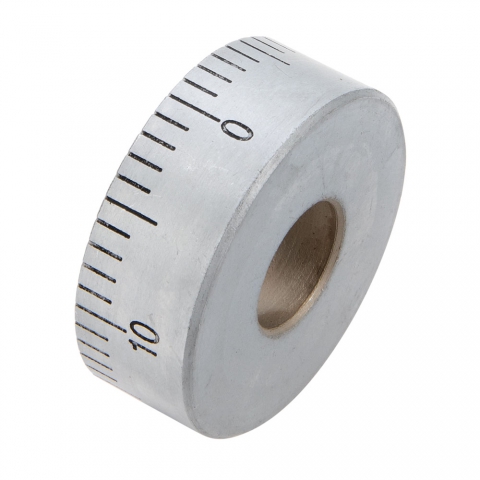

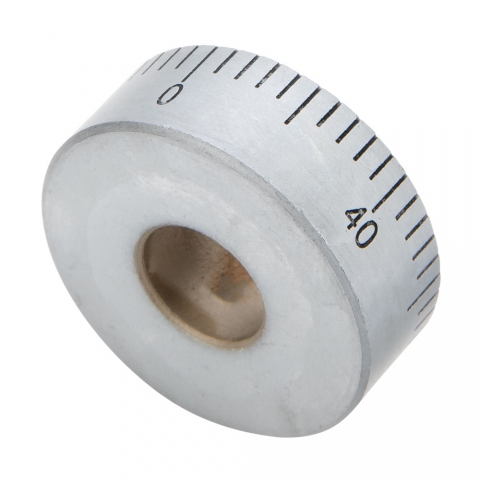

Graduated Dial, 50 Divisions, 20 TPI Mini Lathe


Graduated Dial, 50 Divisions, 20 TPI Mini Lathe
Part Number: 1947
Weight: 0.15 lb

Price: $13.48

In stock
Quantity:


Share this page:
http://lmscnc.com/1947

  • Graduated dial, 50 divisions (20 TPI)
  • Fits cross slide and compound rest on 20 TPI lathes
  • OD: 33 mm
  • ID: 12 mm
  • Width: 12 mm

Description

This graduated dial is used on the cross slide and the compound rest. It works with screws with 20 threads per inch (0.050" per revolution).

The dial is 33 mm OD, 12 mm ID and 12 mm wide.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Chris' Tips

Chris Chris' Tips
Here are the dimension of the various dials we have.

    ID OD Width
1385 Dial, 40 Divisions 12 mm (0.47") 33 mm (1.30") 12.0 mm (0.47")
1483 Dial, 62.5 Divisions 20 mm (0.79") 35 mm (1.38") 11.2 mm (0.44")
1517 Dial, Z-Axis Fine Feed 20 mm (0.79") 29 mm (1.14") 9.0 mm (0.35")
1763 Dial, 50 Divisions 20 mm (0.79") 35 mm (1.38") 11.2 mm (0.44")
1947 Dial, 50 Divisions 12 mm (0.47") 33 mm (1.30") 12.0 mm (0.47")
The Z-Axis Fine Feed Dial has a knurled ridge that is 33 mm in diameter and 1.7 mm wide.

Photos

"Dial

Used On

In your instruction manual, this part appears on the parts list as:

Item No Models
42  Micro-Mark 84631 MicroLux Mini Lathe - 7x16
87  Micro-Mark 82500 MicroLux Mini Lathe - 7x12
Micro-Mark 82710 MicroLux Mini Lathe - 7x14
Click your model to see the complete parts list.



Click here to see the tabs view of this page.
