Bolt Circle Diameter Calculator

Calculator Menu

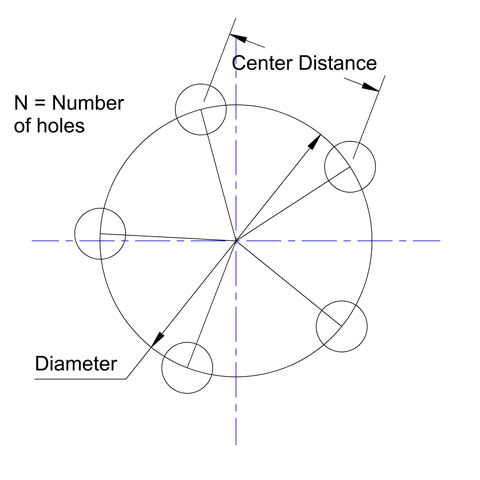

Enter values below to calculate the diameter of a bolt circle.

Number of Holes N
Center Distance Between Adjacent Holes in mm


Tip:

To measure the center distance between two holes of equal diameter with an electronic caliper.

1. Use the inside jaws to measure the diameter of one of the holes. Before you remove the caliper from the hole, press the button to zero the caliper while it is set to the diameter of the hole.

2. Still using the inside jaws, measure the distance between the far surfaces of the two holes. The caliper reading is the distance between centers of the two holes.
