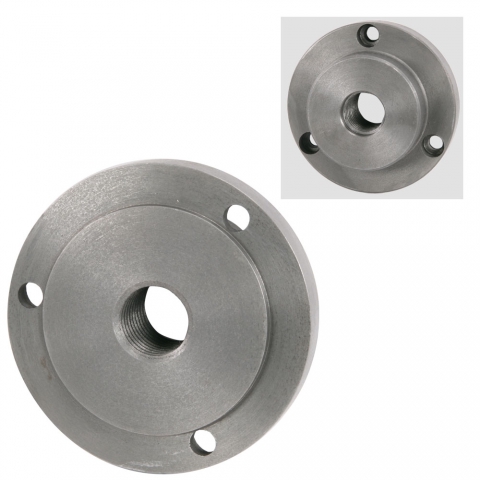

Chuck Adapter, 1"-8 Thread 4" Diameter, 3 Holes

Chuck Adapter, 1"-8 Thread 4" Diameter, 3 Holes
  • Cast iron lathe chuck backplate adapter fits lathes with 1"-8 spindle nose thread
  • Adapter is 4" (100 mm) in diameter and has three chuck mounting holes for a 3-jaw chuck
  • For 4" 3-jaw chucks
  • Includes instructions for final turning of the registration diameter to insure concentricity
Part Number: 1916
Weight: 2.60 lb

Price: $31.95

This product is currently backordered.

Estimated availability:
16-Jun-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

This adapter is for a 4" 3-Jaw chuck such as LittleMachineShop.com PN 1698.

NOTE: PN 1790 is the same adapter just without the 3 holes pre-drilled.

*NOTE* These adapters require machining on the lathe on which they will be used.

Instructions are included for final turning of the registration diameter on your lathe to insure perfect concentricity.

Chris Chris' Tips
Too many adapters? See our chart that correlates lathe spindle threads to lathe chuck adapters and our chart that provides dimensions of threaded lathe chuck adapters.

These adapters must be machined on your lathe to fit the chuck so that it is concentric on the lathe. In most cases you have to drill the chuck mounting holes also.

We provide complete instructions for mounting the adapter. Our transfer screw sets are the perfect tool for marking the chuck mounting holes on a lathe chuck adapter.

WOODWORKERS: Our threaded adapters are not suitable for use on wood turning lathes. Please do not purchase them for this application. These adapters require machining on the lathe on which they will be used, and this is impossible on a wood lathe.

Compatibility

This product works with these LittleMachineShop.com products:
