Lathe Chuck, 3-Jaw 4"
- 3-jaw self centering lathe chuck
- 4" (100 mm) diameter
- Includes chuck key, inside and outside jaws
- Plain back mounting
- High quality steel, hardened and ground
Part Number: 1698
Weight: 6.63 lb
Weight: 6.63 lb
Price: $109.95
This product is currently backordered.
Estimated availability:
17-Dec-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.

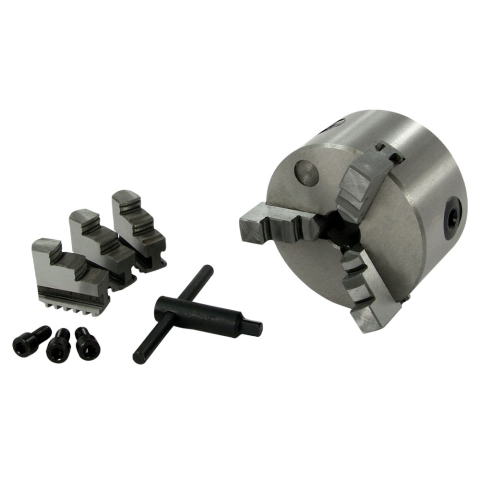

This 4 inch 3-Jaw self-centering lathe chuck includes a chuck key, inside and outside jaws, and mounting bolts.
This chuck has a 0.87" (22 mm) through hole. The chuck can hold work up to 3.15" (80 mm) in diameter.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.
Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Rated Capacity, Inside Jaws | 0.08" - 1.18" (2.0 mm - 30.0 mm) |
Rated Capacity, Jamming Range | 1.18" - 3.54" (30.0 mm - 90.0 mm) |
Rated Capacity, Outside Jaws | 1.18" - 3.15" (30.0 mm - 80.0 mm) |
Practical Maximum Capacity, Inside Jaws | 1.60" (40.6 mm) |
Practical Maximum Capacity, Outside Jaws | 3.75" (95.2 mm) |
Runout (Max) | ≤ 0.003" (0.08 mm) |
Diameter, Overall | 3.94" (100.0 mm) |
Registration Recess Diameter | 2.83" (72.0 mm) |
Registration Recess Depth | 0.14" (3.5 mm) |
Bolt Circle Diameter | 3.31" (84.0 mm) |
Center Hole Diameter | 0.87" (22.0 mm) |
Height | 2.17" (55.0 mm) |
Jaw Height Above Face | 0.79" (20.0 mm) |
Height with Jaws | 2.95" (75.0 mm) |
Number and Size of Bolts | 3 M8 |
Chuck Key | 0.31" (8.0 mm) |
Chuck Designation | K11-100 |
Compatibility
This product works with these LittleMachineShop.com products:
- 1692 Adapter, 4" Lathe Chuck
- 1791 Chuck Adapter, 1"-10 Thread 4" Diameter
- 1917 Chuck Adapter, 1"-10 Thread 4" Diameter, 3 Holes
- 1790 Chuck Adapter, 1"-8 Thread 4" Diameter
- 1916 Chuck Adapter, 1"-8 Thread 4" Diameter, 3 Holes
- 1792 Chuck Adapter, 1-1/2"-8 Thread 4" Diameter
- 1918 Chuck Adapter, 1-1/2"-8 Thread 4" Diameter, 3 Holes
- 1921 Chuck Adapter, M39 x 4 Thread 4" Diameter
- 2335 Chuck Adapter, Unthreaded 4" Diameter
This product works with lathes with a 100 mm flange chuck mount including:
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
In your instruction manual, this part appears on the parts list as:
