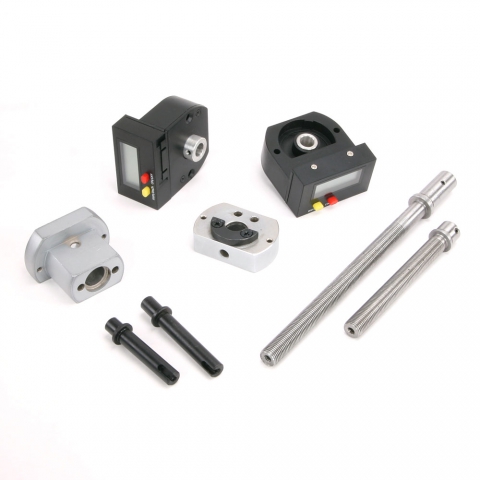

Digital Position Readout, 2-Axis Mini Lathe

Digital Position Readout, 2-Axis Mini Lathe
  • This DRO kit is specifically made for the 7x10, 7x12, and 7x14 mini lathe
  • Mounts right on the cross slide and compound rest to give you accurate depth-of-cut readings
  • Resolution: 0.0001", accuracy: 0.001"
  • Buttons for on/off, zero, and inch/mm
  • Fits SIEG C2/SC2 and HiTorque mini lathes
Part Number: 5675
Weight: 1.40 lb
$175.95 On Sale

Regularly $195.95

This product is currently backordered.

Estimated availability:
16-Nov-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.



PayPal Credit
This digital position readout works with most 7x10, 7x12, or 7x14 lathes made by SIEG (C2 and SC2), which includes almost all the mini lathes sold in the US and most of the mini lathes sold world-wide. It also works with HiTorque mini lathes.

This kit does not work on 20 TPI mini lathes as sold by Micro Mark.

See the Compatibility tab for machines that work with this product.

Chris Chris' Tips
This video shows how to install the DRO on the compound rest of the mini lathe.

Specifications
Repeatability 0.00050" (0.0127 mm)
Resolution 0.00010" (0.0025 mm)
Accuracy 0.00100" (0.0254 mm)
Technology Rotary encoder
Clear to Zero Yes
Inch/mm Display Yes
Made In China
HiTorque 7x16 Deluxe Mini Lathe - DRO on Compound and Cross Slide DRO on Compound and Cross Slide
HiTorque 7x16 Deluxe Mini Lathe - DRO Display DRO Display Installed
"Readout DRO readout in millimeters
"Readout DRO readout in inches

Compatibility

This product works with these LittleMachineShop.com products:

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  •   LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  •   LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  •   SIEG SC2 7x12 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
