HiTorque 7450 Deluxe Mini Lathe - 7x16, Tooling Package, and Stand Cabinet

HiTorque 7450 Deluxe Mini Lathe - 7x16, Tooling Package, and Stand Cabinet
  • All the essentials for a mini lathe setup
  • Save hundreds of dollars with bundled pricing and shipping
  • Includes the HiTorque deluxe mini lathe with upgraded features
  • Includes standard tooling package
  • Includes stand cabinet and drip tray
Part Number: 6512
Weight: 229 lb
$2,599.95 Value Price

Purchased individually $2,670.69

In stock
Quantity:

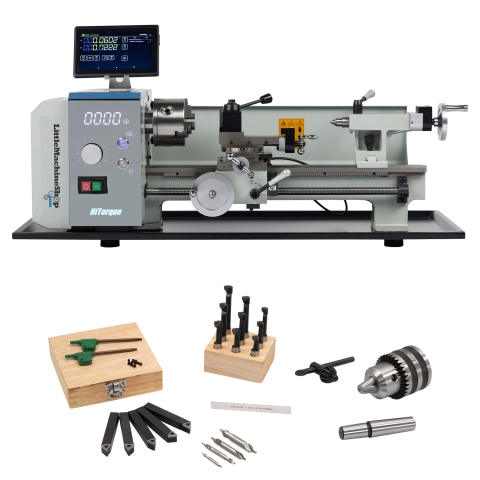

HiTorque Deluxe Mini Lathe with LED display, tooling package, and stand cabinet.

This package includes the newest HiTorque mini lathe, model 7450, the 5124 tooling package and the 5626 stand cabinet.

The 7450 Deluxe mini lathe is has an LED mirror display which clearly and elegantly organizes the key controls for the lathe. All controls are Illuminated, and it includes a start/stop button, a spindle direction button and emergency power (E-stop) switch. A variable speed control knob allows accurate control of spindle speeds, while an integrated spindle speed display clearly displays the speed.

The 7450 lathe also comes equipped with a 2-axis tablet display DRO connected via Bluetooth to magnetic scales on the longitudinal and cross feeds. It also has 2 digital readouts on the compound rest and tailstock. The DRO system measures in increments .0002" and comes factory installed on the lathe.

A 500-Watt brushless spindle drive motor and belt drive provides tremendous power and low-end torque. There are NO gears to shift, so no gears to break. The drive allows for spindle speeds from 100 to 2500 RPM continuously in both directions. NSK brand Japanese-quality spindle bearings ensure smooth and quiet operation.

Standard on the lathe is an all steel, wedge-type quick change tool post which accepts turning tools up to 1/2" shank. Five toolholders are also included for the most common tools and tasks. The lathe also comes with a 4" Sanou lathe chuck, a Morse taper #2 dead center for the tailstock, and an 11-gear change gear set that includes a 21-tooth gear for accurate metric threading. For more details, see the Contents tab.

Real top and bottom half-nuts with a 16 TPI lead screw and a factory-installed threading dial provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.3 to 8 mm pitch with the extra 21 tooth change gear that is included.

The 7x16 lathe includes attractive aluminum hand wheels and chrome levers. A backsplash guard and deluxe chip tray with rubber feet give a broader and more secure stance.

The 5124 tooling package comes equipped with a 2MT short arbor for the tailstock, a boring bar set, center drills, cut-off blade, 1/2" drill chuck and a set of turning tools with indexable inserts.

The 5626 stand cabinet comes from the lathe manufacturer and the chip tray has pre-drilled mounting holes that fit the footprint of the mini lathe. It is a single column design with a cabinet for storage.

*NOTE* We ship machines only to the US and Canada.

Chris Chris' Tips


Take a look at the HiTorque 7450 mini lathe in action.

View a comparison of the specifications for our lathes.

See what the difference is between the SIEG drive system and the HiTorque drive system.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually make more thread pitches than that. And, there are more change gear combinations than those shown in the users guide. To see what you can really do, see the Change Gear Calculator.


Why HiTorque mini lathes have plastic change gears.

First, a couple of notes:

  • The use of plastic gears in HiTorque machines is limited to mini lathe Change Gears. HiTorque mills and lathes have no Drive Gears as they utilize a brushless DC drive with a belt directly from the motor to the spindle. In short, there are no gears at all in the spindle drive.
  • When you read about plastic gears breaking, most cases involve the two-speed gears inside the headstock of mini mills. As noted, this does not apply to any HiTorque mini mill as we have no gears in the spindle drive.
  • The use of plastic change gears does not apply to the HiTorque bench lathes. Our larger HiTorque bench lathes, which are designed for larger work pieces, greater power, and more torque, have all metal gears as appropriate for their size.
With those qualifiers out of the way, here are some of the important points in favor of using plastic Change Gears in HiTorque mini lathes:

  • Plastic gears are quieter than metal gears. Metal change gears raise the sound level to an objectional level.
  • Plastic gears are more economical and help reduce machine cost and keep gear replacement cost to a minimum.
  • Our plastic gears are made from a thermoplastic Polyoxymethylene (POM) which are very durable.
  • In the rare cases where a plastic gear does fail, it is often due to using the lathe for jobs beyond its design parameters. In such a case, the broken gear worked as an inexpensive mechanical fuse, saving the machine from damage.
If you prefer metal change gears, we sell a Metal Change Gear Set. Note: Please check the compatiblity tab on the product page to ensure that you are getting the correct gear set for your machine.

For more information on plastic gears visit our detailed discussion Plastic Gears, Good or Bad?.

Here are the user's guides for our machines.

  • LED display with illuminated controls and integrated spindle speed readout
  • Factory installed 2-axis DRO with 7" Android tablet readout on cariage and cross feed
  • Digital readouts on the compound rest and tailstock quill
  • 500 Watt output spindle motor
  • NSK brand Japanese bearings
  • No gears in spindle drive
  • Aluminum hand wheels
  • Chrome levers
  • Cam lock tailstock with DRO
  • E-stop safety power switch
  • Extended threading capability - inch and metric threads
  • Integrated Threading dial
  • Reversible lead screw for right and left hand threads
  • 0XA wedge-type Quick change tool post set with five tool holders
  • 4" 3-jaw SANOU chuck
  • Rear apron shield to keep swarf out of the mechanism
  • Heavy duty chip tray with wide stance rubber feet for added stability
  • Mini Lathe Users Guide
Specifications
Swing Over Bed 7.1" (180 mm)
Swing Over Saddle 4.3" (110 mm)
Distance Between Centers 16" (410 mm)
Cross Slide Travel 2.6" (65 mm)
Spindle Through Hole 0.8" (20 mm)
Spindle Taper #3 Morse taper
Tailstock Taper #2 Morse taper
Range of Threads 4-80 TPI; 0.3-8.0 mm
Spindle Motor Output 0.67 hp (500 Watts)
Spindle Speed 100 - 2500 RPM
Power Requirements 120 V 60 Hz 8 Amps
Machine Weight 108 lbs (49 kg)
Crated Weight 143 lbs (65 kg)
Overall Dimensions (W x D x H) 31" x 10" x 12" (790 mm x 260 mm x 300 mm)
Crate Dimensions (W x D x H) 36" x 17" x 18" (920 mm x 440 mm x 465 mm)
"HiTorque 7x16 Deluxe Mini Lathe Shown with Accessories
"HiTorque 7x16 Deluxe Mini Lathe Alternate View
"HiTorque 7x16 Deluxe Mini Lathe Alternate View
"HiTorque 7x16 Deluxe Mini Lathe Alternate View
"HiTorque 7x16 Deluxe Mini Lathe Rear View
"HiTorque 7x16 Deluxe Mini Lathe Control Panel
