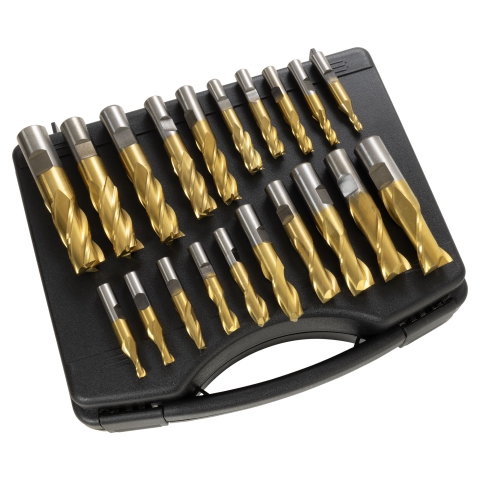

End Mill Set, 20-pieces 2 & 4 Flute, TiN coated HSS, Premium

End Mill Set, 20-pieces 2 & 4 Flute, TiN coated HSS, Premium
  • 20 piece TiN coated HSS end mill set
  • Includes both 2 flute and 4 flute end mills
  • Right-hand square, center cutting
  • 3/16" to 3/4" by 16ths
  • Comes with fitted box
Part Number: 6784
Weight: 4.00 lb
$159.95 On Sale

Regularly $179.95

In stock
Quantity:


PayPal Credit
Premium Twenty-piece TiN coated high speed steel (HSS) end mill set including both 2 & 4 flute end mills. Sizes range from 3/16" to 3/4" by 16ths.

There are four different shank sizes in this set and each size has one 2 flute and one 4 flute end mill. The shank sizes are as follows:

3/8" shank: 3/16", 1/4", 5/16", 3/8", 7/16"

1/2" shank: 1/2", 9/16"

5/8" shank: 5/8", 11/16"

3/4" shank: 3/4"

Each end mill is made from high-speed steel and has a hardness of 58 to 60 RC.

The set comes in a sturdy plastic case with fitted foam insert to keep the tools secure.

Square end mills are ideal for profiling, slotting, plunge, peripheral, helical cutting, profiling, and plunge cutting. TiN-coated end mills can reduce the need for lubricants, depending on the application. They are best used on difficult to machine materials such as titanium, stainless steel, and cast iron. The coating will ensure a nice surface finish.

Chris Chris' Tips
Conventional wisdom is that 2-flute end mills are used on aluminum, while 4-flute end mills are used on steel and brass.

2-flute end mills are used on aluminum because aluminum is easy to machine and you can take big cuts. Two-flute end mills provide a lot of room between the flutes for the big chips produced when making heavy cuts.

4-flute end mills can produce a slightly better finish at the same cutting speeds because there are twice as many cutting edges, each taking off half as much material. But again, if you are not trying to maximize production, you can simply slow the feed rate with a 2-flute end mill for the same effect.

End mills are also classed as "center cutting" or "non center cutting". With a center cutting end mill, you can plunge the end mill into the work as you would a drill. This is important if you are cutting a slot that does not extend to the edge of the part. Center cutting end mills are easy to identify. If the flutes meet in the middle of the end of the end mill, it is a center cutting end mill. In some cases, one of the flutes will be longer, reaching right to the center. If the flutes stop short of the center, leaving a space with no flutes in the center, it is a non-center cutting end mill.

Specifications
Cut Type Center Cutting
Cutting Direction Right
End Cut Type Square
Finish Type TiN
Material Type High Speed Steel
3/8" Shank Diameter Sizes: 3/16" - 7/16"
1/2" Shank Diameter Sizes: 1/2" and 9/16"
5/8" Shank Diameter Sizes: 5/8" and 11/16"
3/4" Shank Diameter Sizes: 3/4"
Shank Material Type High Speed Steel
Shank Type Weldon
