Lathe Chuck, 4-Jaw 4", Self-Centering

Lathe Chuck, 4-Jaw 4", Self-Centering

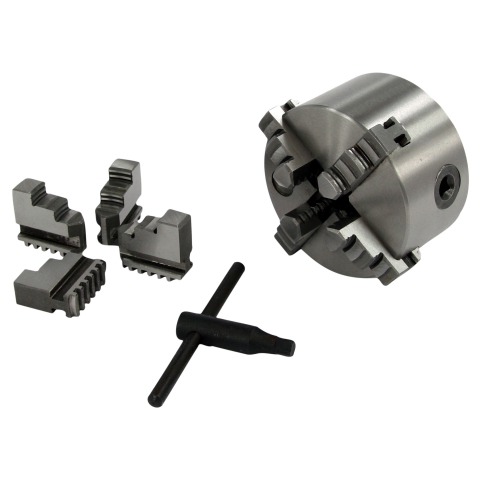

  • 4-jaw self-centering lathe chuck
  • 4" (100 mm) diameter
  • Plain back mounting
  • Includes chuck key, inside and outside jaws
  • High grade tool steel
Part Number: 2361
Weight: 7.60 lb

Price: $155.95

In stock
Quantity:


PayPal Credit
4 inch, 4-Jaw self-centering lathe chuck for square or octagonal work.

The through bore of this chuck is 20 mm (0.79").

This lathe chuck can hold work up to 80 mm (3.15") in diameter.

The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.004" maximum.

Chris Chris' Tips
This is a fairly specialized chuck for turning square or octagonal stock.

A 4-jaw independent chuck is a lot more commonly used.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications
Rated Capacity, Inside Jaws 0.08" - 1.18" (2.0 mm - 30.0 mm)
Rated Capacity, Jamming Range 1.18" - 3.54" (30.0 mm - 90.0 mm)
Rated Capacity, Outside Jaws 1.18" - 3.15" (30.0 mm - 80.0 mm)
Runout (Max) ≤ 0.0032" (0.081 mm)
Diameter, Overall 3.94" (100.0 mm)
Registration Recess Diameter 2.83" (72.0 mm)
Registration Recess Depth 0.14" (3.5 mm)
Bolt Circle Diameter 3.31" (84.0 mm)
Center Hole Diameter 0.87" (22.0 mm)
Height 2.17" (55.0 mm)
Jaw Height Above Face 0.91" (23.0 mm)
Height with Jaws 2.91" (74.0 mm)
Number and Size of Bolts 3 M8
Chuck Key 0.31" (8.0 mm)
Max RPM 3500 RPM
Chuck Designation K12-100

Compatibility

This product works with these LittleMachineShop.com products:

This product works with lathes with a 100 mm flange chuck mount including:

  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   MX-8x14 Preenex (and others) 8x14 Lathe
  •   Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
  •   Grizzly G0768 8x16 Benchtop Lathe
  •   LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  •   SIEG SC4 8.5x16 Bench Lathe
  •   SIEG C4 8.5x16 Bench Lathe
  •   Travers Tools OT218410 OTMT 8x16 Bench Lathe
  •   LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  •   LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
